AVIATION

---

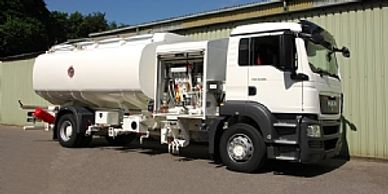

Technical specification:

• Unit is provided with a suitable calibrated MS tank pressure tested at 5psi as per petroleum norms 2002.
• This Tank is mounted on the chassis with the help of proper saddle U bolting with the chassis.
• Quick inspection manhole covers are provided with PESO approved safety fittings.
• SS bottom emergency valve with fusible link and internal tank valve with level sensor.
• Dial type content gauge with float mechanism is provided on the tank for monitoring tank capacity.
• All pipelines are seamless SS 304 schedule 10 type, pipeline is acid cleaned and hydro tested at 150PSI.Pipelines is designed with minimum bends to offer minimum pressure loss.
• Dead man type fuelling operation is installed.
• Brake interlock system is provided to avoid any accidental damages.
• Bottom loading adapters, one on each side of the unit are provided for loading purpose
• Two Catherine wheel type motorized hose reel are provided.
• Primary pressure control (PCV) is provided in line and Hose end pressure control valve (HEPCV) is provided at the nozzle end.
• 4Ltrs. standard online sampler is provided for sampling purpose.
• The bulk meter with electronic counter and pulse transmitter approved by CCOE / legal metrology dept. is installed for metering fuelling and defuelleing.
• Filter water separator type vessel is provided with coalesor and separator elements with other required sensing lines.

Technical Specification :

• Tubular trolley structure enables the trolley to move smoothly suitable for single man operation.
• Engine : Petrol Start, Kerosene operated Engine.
• Pump : Positive Displacement Pump suitable for 40 to 80 LPM.
• Filter: IP/ API compliant Absorbent type filter, 1 micron cartridge , Pressure Differential gauge.
• Flow Meter:Lightweight Aluminum Flow meter suitable for 120 LPM with Mechanical Register, totalizer and Reset Knob.
• Hose & Reel: Self Retracting type, ¾” x 8 Mtr Petroleum Hose.
• Delivery Nozzle: Lightweight Aluminum Nozzle suitable for 120 LPM.
• Suction: 1.5” X 6 Mtr Suction Hose with SS suction pipe to suck from Barrel.
• Hand Pump : hand pump for stand by operation.

Technical Specification

• Mild Steel / Stainless steel tank with capacity ranging from 2500L to 10000L with baffled compartments.
• PESO approved emergency safety valve with fusible link and lever
• EMCO type manhole cover with PESO approved safety fittings and fill pipe dip pipe for top loading provision.
• PTO operated fueling pump
• Weight & Measure approved Flow Meter with Electronic / Mechanical counter
• Stainless steel pipeline designed with minimum bends to avoid flow loss.
• Self retracting hose reels with Hoses suitable for ATF application.
• Underwing / overwing Nozzle with Auto cut off facility.
• Design approved by PESO.
• All components installed are in line with adaptability for ATF.
