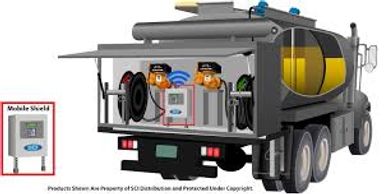

Mobile Dispensing Bowser

---

  990 Ltrs.- 2000 Ltrs.

 Technical Specification

• Mild steel Tank with capacity range of 990Ltrs. to 2000 Ltrs.
• ​​EMCO type manhole cover with fill pipe and dip pipe provision for top loading.
• ​​12V/24V DC operated atex certified fuel pump suitable for upto 60lpm.​​
• Flow meter with Electronic / mechanical counter with Totaliser facility suitable for upto 60lpm.​​
• 1" X 10M petroleum hose with suitable self retracting Hosereel.​​
• Nozzle with auto cut off provision.

 2500 Ltrs.- 6000 Ltrs.

Technical Specification

• Mild Steel Tank with capacity ranging from 2500L to 6000L with optional single / seal compartments.​
• PESO approved emergency safety valve with fusible link and lever​
• EMCO type manhole cover with PESO approved safety fittings and fill pipe dip pipe for top loading provision.​
• PTO operated fuelling pump suitable for upto 120 Lpm.​
• Weight & Measure approved Flow Meter with Electronic / Mechanical counter with preset facility.

 9000 Ltrs.- 16000 Ltrs.

Technical Specification

• Mild Steel Tank with capacity ranging from 2500L to 6000L with optional single / seal compartments.
• PESO approved emergency safety valve with fusible link and lever
• EMCO type manhole cover with PESO approved safety fittings and fill pipe dip pipe for top loading provision.
• PTO operated fueling pump suitable for upto 120 Lpm.
• Weight & Measure approved Flow Meter with Electronic / Mechanical counter with preset facility.
• Fuel management system with RFID and Geo Tracking.
• Self retracting hose reel with suitable petroleum hose.
• Nozzle with Auto cut off facility.

   990 Ltrs.- 2000 Ltrs.


Technical Specification

• Trolley with wheels and braking system suitable for load carrying.
•  Mild steel Tank with capacity range of 990Ltrs. to 2000 Ltrs.
• ​​EMCO type manhole cover with fill pipe and dip pipe provision for top loading.
• ​​12V/24V DC operated atex certified fuel pump suitable for upto 60lpm.​​
• Flow meter with Electronic / mechanical counter with Totaliser facility suitable for upto 60lpm.​​
• 1" X 10M petroleum hose with suitable self retracting Hosereel.​​
• Nozzle with auto cut off provision.

Technical Specification

• Diesel fuel dispenser for non commercial / commercial use. Sturdy structure designed for different applications
• Can be fixed to walls, tanks cisterns, drums, special pedestals.
• Self-priming vane pump fitted with bypass, installed on anti-vibration supports.
• Mechanical seal. Induction motor fitted with thermal motor overload protection.
• Automatic nozzle with swivel connection. Integrated nozzle holder with stop/start pump lever. Intake mesh filter.
• Fitted with oval gear meters and an electronic unit for multi user control and pre-selected dispensing.
• Local memory capable of storing data for last 255 operations.
•  Interfaces with PC for sending and organising data.
• Possibility of entering vehicle registration number, kilometres, date and time of dispensing operation.

Technical Specification

• Organisations that manage large fleets of vehicles, or have underground or overground tanks, need to be able to monitor users and vehicles, and to be promptly alerted to changes in fluid levels.
• Our level indicators integrate perfectly with our control software, making it possible to monitor fuel tank levels even from remote locations, activate alarms, measure quantities dispensed and export all the data to external systems for control and analysis purposes.
• We have developed a range of professional solutions for monitoring tank fluid levels, quantities dispensed and users.
